1987 Marine Trader Sundeck

This is a list of highlights and recently serviced items.

Highlights

Replaced Stainless Steel fuel tanks

Replaced Stainless Steel water tanks

All windows re-seated

Fiberglass decks

Updates in the last 5 years.

Recently serviced generator

New solar panels

Electric toilets serviced

New house batteries (2025)

New starter batteries (2025)

New generator exhaust

Full bimini and enclosure with strata glass sindows and wiper on flybridge (2023)

New Flybridge deck carpeting

New Full Lohmann winter cover

New Admiral’s helm chair on flybridge

New 33 Kg Rocna anchor with stainless steel anchor swivel

New 2000W Inverter

New Battery charger

New 12V wiring and switching

New NovaKool refrigeration

New Yetti 120 qt cooler/freezer on sundeck

New Propane stove integrated to the cockpit table

New Magma rail-mounted BBQ

12’ Aluminum RHIB

20HP Mercury outboard (2020)

GPS/chart plotter/fish finder on tender

Dinghy lift harness

Webasto hydronic heating rebuilt and serviced

Older items, but important to note

Both engines received new exhaust (2017)

Transmissions removed and serviced (2018)

New raw water pumps (2018)

New props, shafts and bearings replaced (2017)

18 through hulls replaced (2017)

Freshwater pump replaced (2017)

Aft head and pump out system was replaced(2017)

Board from the swim grid, then through the transom gate, or via portable stairs onto either side. The cockpit is serviceable with a large lazarette and access to the upper sundeck or the aft stateroom.

The aft stateroom is huge! It has a centerline queen with plenty of walk-around room and loads of storage. The ensuite is equipped with a bathtub for the ultimate in decadence.

A couple of steps up is the main salon. There is an L-shaped settee to starboard and two chairs to port. The settee in combo with the table makes a double bunk. Full engine access is below the sole here. Windows abound and make for a very bright room that you’ll want to spend time in.

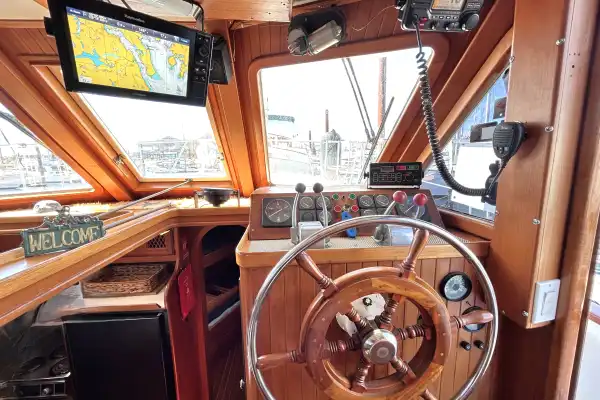

The inside helm is forward of the salon to starboard, on the same level. There’s a sliding door next to the helm for easy access to the deck. Handy when docking.

A few stairs drop down into the lower forward aspect of the vessel. To port is the galley. There is a wonderfully long countertop for food preparation, a double stainless steel sink, a microwave, a 3-burner stove with oven, and a large front-loading fridge/freezer. Again, the huge windows around the saloon and over the galley make for a bright and inviting space.

Opposite the galley is an enclosed toilet compartment with a vanity and hand sink, an electric marine head, and a shower.

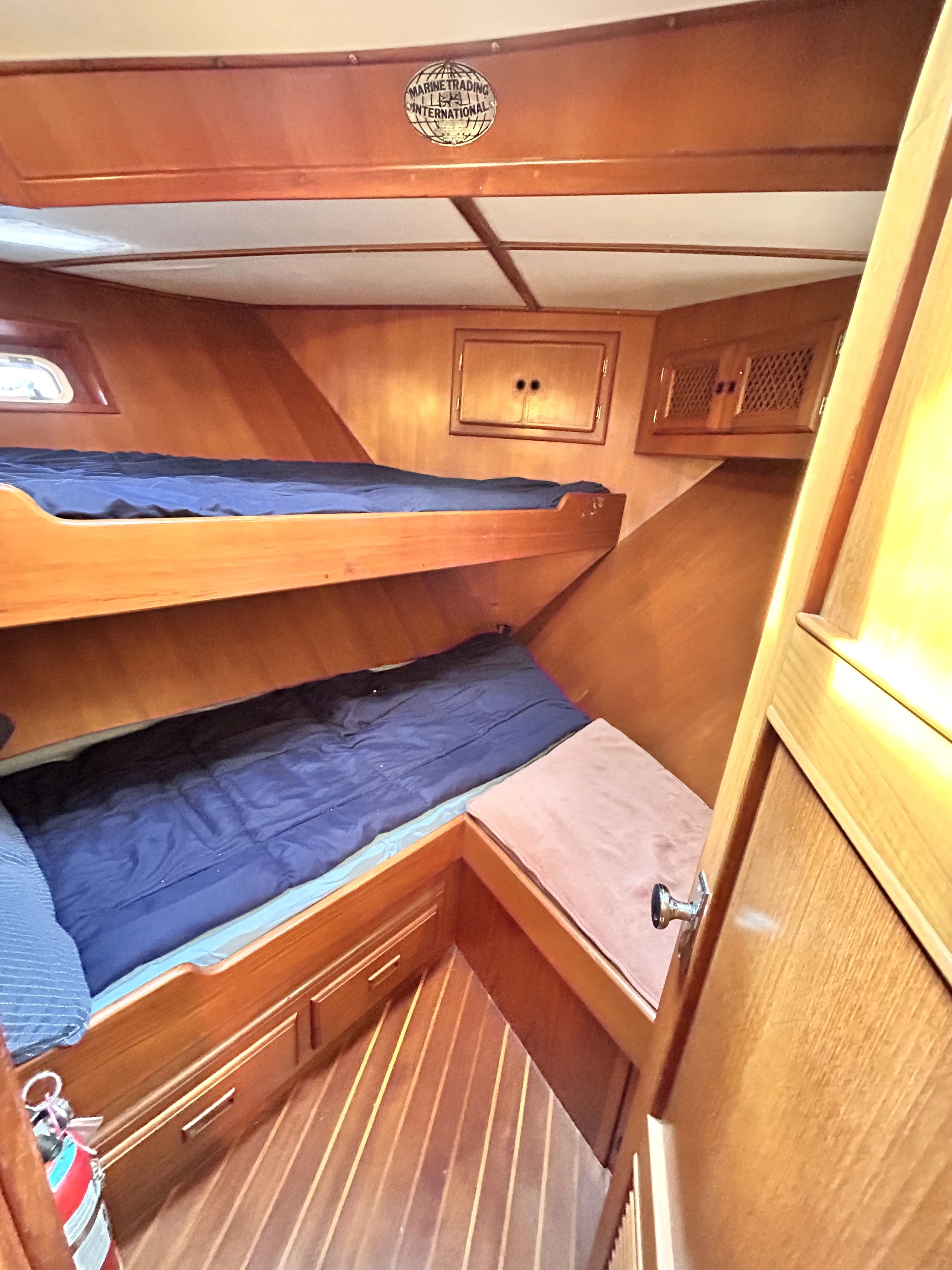

Moving forward is another stateroom, with staggered double and single berths, a hanging locker and access to the chain locker in the forepeak.

Returning to the salon, there is a set of stairs that leads up to the sundeck, where you’ll find comfy chairs, a BBQ, and beautiful furnishings, all under a hard dodger. Move forward and up a couple of steps up onto the flybridge with the upper helm. There are plenty of places to sit and chat on bench seats, a companion seat, or the captain’s chair. This area can be fully enclosed with vinyl and strata glass surrounds. Both the sundeck and flybridge have stunning blue-patterned floor coverings. There is a window with a windshield wiper installed to operate in the rain.

Above the sundeck, accessible via the flybridge, is a hard deck for tender storage, the tender hoist, and a life raft. It’s also the perfect diving platform on those hot summer days when you’re wanting a little thrill.

The side decks are wide enough to maneuver around, but not so wide as to hog interior living space. The foredeck is beautifully spacious. This is the place for yoga and disco parties.

Efficient cooking: Princess 3-burner stove w oven; microwave oven

Preserve food and eat cold things: NovaKool upright fridge/freezer dual voltage (12/120V)

Sundeck has a Yeti 125-quart 12V fridge/freezer

Outdoor cooking: Magma BBQ

Two burner propane cook stove integrated into the cockpit table

Power efficient: Top-loading fridge

Low splash, large volume: Double SS sink

Convenient water: Pressurized H/C water

Hydronic heating thru-out with programmable thermostat

Easy and clean freshwater flush electric toilets

Get clean while away: Showers in heads

Sundeck has several chairs for socializing and resting

Flybridge has several seats, beautiful floor coverings, and access to the top of the hard dodger over the sundeck

Easy access to sleep: Centreline queen island berth with tons of storage surrounding

Flat screen TV with DVD player in aft stateroom

Pioneer sound system w/Bluetooth speaker

Bathtub! Yup. Soak your bones after a hard day of play.

·Radar helps you see in limited visibility: Raymarine  4G (2017)

GPS on a chartplotter tracks your location in real time: Raymarine”Hybrid Touch, upper and lower helms (2017)

Hands-free steering: ComNav autopilot, remote at upper helm.

Depth sounder

Marine radio: Icom IC-M506 with upper helm remote (2017); Uniden handheld

6” Ritchie (upper), 3 ½” Danforth”(lower), Wagner 5” for autopilot

Rudder angle indicators so you don’t have to count turns of the wheel

Produce

AC: 120V, 30A

50’ 30-amp cord

Generator: Onan 4Kw – recently serviced

Alternator: 2 x 160A

Solar panels: 3 x 180W

Solar controller: Victron 2 x MPPT

Inverter/charger: 2000W Xantrex Freedom

Store

DC: 12V

All DC systems were replaced in 2019 by Pacific Yacht Systems

NEW House batteries:Discover EV Line GRP 903/L16 HR AGM 390/20 Hr house batteries X 4

NEW Start batteries: 2 x Group 31 AGM

Twin 1986 Ford Lehmans SP135 (Ford 2725) ; in-line 6-cyl; 2 x 135HP

Transmissions: Borg Warner 2:1 reversing

SS shafts

3-Blade bronze props

Hours: 1,485 and 1,477

Closed system cooling

3-Blade bronze

SS fuel tanks: 400 gal total

Steering is hydraulic w emerg tiller at both stations

Tender is a rigid hull inflatable (RHIB) 12’ long 2017 Bakerview aluminum w console, model ALU330-DL. Well sized and stable.

Outboard is reliable: 2020 Mercury 20HP 4-stroke, F20E, Model 1A20302BK

Electric tender hoist w remote control

NEW SS freshwater tanks: 200 gal

Fresh water pump is electric

120v heating pads on fresh-water tanks

Hot water tank: Torrid 10 gal

Holding tank: 20 gal Fiberglass

Macerator

Tank level monitor

Two toilets are electric flush

Shower in each head

Sumps to catch shower water and pump it overboard immediately

3 Electric bilge pumps to keep water from condensation, leaks, etc., out of the bilge. One manual.

Hydronic heating –water is heated by a diesel furnace, then piped throughout, warm air then gets fanned into cabins via 4 radiators

Canvas is a lovely royal blue colour that protects from UV and the weather. Fully enclosed flybridge with vinyl and strata glass lenses. Glass window with windshield wiper is incorporated into the enclosure.

Full Lowman’s winter cover

Window covers

Brightwork covers

Hull is finished with white gelcoat w a royal blue accent

Brightwork is all fresh

Interior fabrics are light and neutral in colour and range from cloth to faux leather

Headliner is synthetic covered panels

Bulkheads are wood

Cabin soles are parquet hardwood

Countertops are finished with Arborite

Hardwood tabletops

Let the windlass do the heavy lifting: 12V Maxwell horizontal bronze

Anchor is a Rocna 33 Kg (best in weeds, mud, sand. Excellent resetting, durability, holding power, and releases easily.)

300’ of 3/8” galvanized chain w/markers at each 50’

Anchor retrieval system w/anchor ball

200’ 3/8” poly stern-tie line on spool in cockpit

12V bilge pumps

Dual, two-tone, air powered signalling horns

Electrical bilge pumps

Manual bilge pump

Magnetic compass

Navigation lights to code

Sound signal

Spotlight

Radar reflector

Ship’s clock

Barometer

Emergency steerage

Ample ground tackle

2 X CO alarm

Fuel shut offs at helm stations

Self-enclosed propane locker

High water alarm

2 X Fire alarm

2 X Fire blanket

Fire extinguishers

Fire axe

Fire bucket

PFDs

Re-boarding device

Life ring w buoyant heaving line

Throw line 50’

Waterproof flashlight

Life raft

Distress flares

Spare steel exhaust elbows, fresh water pump, coolant pump, primary fuel pump, belts, filters, tool box with tools, hand pump for oil extraction

The hull is thick, solid fibreglass made of fiber-reinforced plastic (FRP). Flared bows and raked stem, hard chines, V-bottom

The decks are FRP sandwich-cored

The cabin structure is FRP sandwich-cored

There is a ¾ keel and transom stern w swim platform

Boarding is done by a transom door, or side decks w removable steps

The sundeck is accessed via stairs port and starboard midships from the side decks

From the sundeck, a couple of steps up takes you to the flybridge w outer helm

The cockpit features a transom door to the swim platform, a ladder to the sundeck, a door to the aft cabin, and a large lazarette

SS railing on stations along side-decks, handrails and flybridge

Live fish tank below cockpit floor

Wash-up sink and H/C taps in cockpit

12v air compressor on flybridge for horn or dinghy inflation

12v deck/chain wash-down hose

Tool locker in master cabin
